There are some jobs that tires just aren't suited to, especially when your soil's wet and it could rain any minute. Maybe you've got some hills to climb or what you're pulling on the back of your agricultural tractor just needs some serious traction to keep you moving at the speed you want. And actually, you just want to get on with the job rather than being delayed, waiting for the perfect conditions.
That's why Bridgestone Industrial Products America, Inc. now offers high quality rubber agricultural tracks for tracked agricultural machinery. Take a look at some of the reasons why Bridgestone tracks will keep you moving and focussed on what you do best.
| Material ID # | Make | Tractor Model | Series | Track Width | Tread Bars Qty | Tread Height (In) | Tread Pitch (In) | Guide/DriveLug Qty | Carcass Plies |
Carcass Main CableSize(mm) |
Carcass Thickness (mm) |
CarcassEdge Thickness (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AG003692 | AGCO | Challenger MT700 A to E | ALL TRAC CLS 6 18x44 ST | 18" | 88 | 2.56 | 8.03 | 44 | 4 | 4.5 | 41 | 48.5 |
| AG003682 | AGCO | Challenger MT700 A to E | ALL TRAC CLS 5 24X59 ST | 24" | 118 | 1.97 | 5.99 | 59 | 4 | 5.3 | 41 | 50 |
| AG003693 | AGCO | Challenger MT700 A to E | ALL TRAC CLS 6 24x44 ST | 24" | 88 | 2.76 | 8.03 | 44 | 4 | 5.3 | 41 | 46 |
| AG003683 | AGCO | Challenger MT700 A to E | ALL TRAC CLS 5 30X59 ST | 30" | 118 | 1.97 | 5.99 | 59 | 4 | 5.3 | 41 | 50 |
| AG003694 | AGCO | Challenger MT700 A to E | ALL TRAC CLS 6 30x44 ST | 30" | 88 | 2.76 | 8.03 | 44 | 4 | 5.3 | 41 | 46 |
| AG003687 | AGCO | Challenger MT800 | ALL TRAC CLS 5 30X66 ST | 30" | 132 | 1.97 | 5.99 | 66 | 4 | 5.3 | 41 | 50 |
| AG003689 | AGCO | Challenger MT800 | ALL TRAC CLS 6 30X50 ST | 30" | 100 | 2.76 | 7.91 | 50 | 4 | 5.3 | 41 | 46 |
| AG004491 | AGCO | Challenger MT800 | ALL TRAC CLS 6S 30x50 ST | 30" | 100 | 1.97 | 7.91 | 50 | 4 | 5.3 | 41 | 46 |
| Coming Soon | AGCO | Challenger MT738/740/743 | ALL TRAC CLS 6 18x45 ST | 18" | 90 | 2.56 | 8.03 | 45 | 4 | 4.5 | 41 | 48.5 |
| Coming Soon | AGCO | Challenger MT738/740/743 | ALL TRAC CLS 6 24x45 ST | 24" | 90 | 2.56 | 8.03 | 45 | 4 | 4.5 | 41 | 48.5 |
| AG003666 | CAT | Challenger 35/45/55 | ALL TRAC CLS 4 18X53 ST | 18" | 106 | 1.97 | 5.99 | 53 | 4 | 4.5 | 37 | 45.5 |
| AG003665 | CAT | Challenger 35/45/55 | ALL TRAC CLS 4 24X53 ST | 24" | 106 | 1.97 | 5.99 | 53 | 3 | 4.5 | 37 | 46 |
| AG003668 | CAT | Challenger 35/45/55 | ALL TRAC CLS 4 30X53 ST | 30" | 106 | 1.97 | 5.99 | 53 | 3 | 4.5 | 37 | 46 |
| AG009359 | CAT | Challenger 65/75/85/95 | ALL TRAC CLS 5 24x56 ST | 24" | 112 | 1.97 | 5.99 | 56 | 4 | 5.3 | 41 | 50 |
| AG009360 | CAT | Challenger 65/75/85/95 | ALL TRAC CLS 5 30x56 ST | 30" | 112 | 1.97 | 5.99 | 56 | 4 | 5.3 | 41 | 50 |
| AG003687 | FENDT | 1100 Vario MT | ALL TRAC CLS 5 30X66 ST | 30" | 132 | 1.97 | 5.99 | 66 | 4 | 5.3 | 41 | 50 |
| AG003689 | FENDT | 1100 Vario MT | ALL TRAC CLS 6 30X50 ST | 30" | 100 | 2.76 | 7.91 | 50 | 4 | 5.3 | 41 | 46 |
| AG004491 | FENDT | 1100 Vario MT | ALL TRAC CLS 6S 30x50 ST | 30" | 100 | 1.97 | 7.91 | 50 | 4 | 5.3 | 41 | 46 |
| Coming Soon | FENDT | 900 Vario MT | ALL TRAC CLS 6 18x45 ST | 18" | 90 | 2.56 | 8.03 | 45 | 4 | 4.5 | 41 | 48.5 |
| Coming Soon | FENDT | 900 Vario MT | ALL TRAC CLS 6 24x45 ST | 24" | 90 | 2.56 | 8.03 | 45 | 4 | 4.5 | 41 | 48.5 |
| AG003692 | JD | 8RT | ALL TRAC CLS 6 18x44 ST | 18" | 88 | 2.56 | 8.03 | 44 | 4 | 4.5 | 41 | 48.5 |
| AG003682 | JD | 8RT | ALL TRAC CLS 5 24X59 ST | 24" | 118 | 1.97 | 5.99 | 59 | 4 | 5.3 | 41 | 50 |
| AG003693 | JD | 8RT | ALL TRAC CLS 6 24x44 ST | 24" | 88 | 2.76 | 8.03 | 44 | 4 | 5.3 | 41 | 46 |
| AG003683 | JD | 8RT | ALL TRAC CLS 5 30X59 ST | 30" | 118 | 1.97 | 5.99 | 59 | 4 | 5.3 | 41 | 50 |
| AG003694 | JD | 8RT | ALL TRAC CLS 6 30x44 ST | 30" | 88 | 2.76 | 8.03 | 44 | 4 | 5.3 | 41 | 46 |
| AG003670 | JD | 8000T | ALL TRAC CLS 6 16X41 ST | 16" | 82 | 2.56 | 7.91 | 41 | 4 | 4.5 | 41 | 46 |
| AG003672 | JD | 8000T | ALL TRAC CLS 4 24X54 ST | 24" | 108 | 1.97 | 5.99 | 54 | 4 | 4.5 | 37 | 46 |
| AG003675 | JD | 8000T | ALL TRAC CLS 4 30X54 ST | 30" | 108 | 1.97 | 5.99 | 54 | 3 | 4.5 | 37 | 46 |
| AG003684 | JD | JD9X00T to 9X20T | ALL TRAC CLS 6 30X48 ST | 30" | 96 | 2.76 | 7.91 | 48 | 4 | 5.3 | 41 | 51 |
| AG003685 | JD | 9000T | ALL TRAC CLS 5 36x63 ST | 36" | 126 | 1.97 | 6 | 63 | 4 | 5.3 | 41 | 55 |
| AG003695 | JD | JD9X30T/9RT | ALL TRAC CLS 6 30X49 ST | 30" | 98 | 2.76 | 7.91 | 49 | 4 | 5.3 | 41 | 46 |
| AG003669 | JD | Harvester | ALL TRAC CLS 3 34X46 ST | 34" | 92 | 1.97 | 5.99 | 46 | 3 | 4.5 | 32 | 23 |
| Positive Drive - 4 Track | ||||||||||||
| AG013572 | CASE | STX/Quadtrac - AG Spec*Not applicable for new model 715hp+ | ALL TRAC CLS 5 32x42 ST | 32" | 84 | 1.97 | 6 | 42 | 3 | 4.5 | 35 | 38 |
| Coming Soon | CASE | STX/Quadtrac - HD Spec*Not applicable for new model 715hp+ | ALL TRAC CLS 5S 32x42 ST | 32" | 84 | 1.97 | 6 | 42 | 3 | 4.5 | 35 | 38 |
Other sizes and CLS’s are available for most machines, please inquire

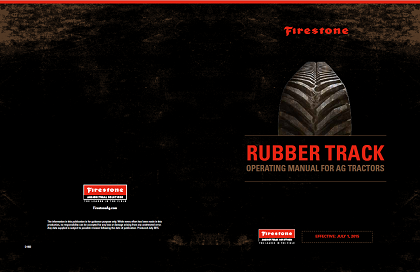

Download AG Tracks Operating Manual (3.7MB) [PDF]
